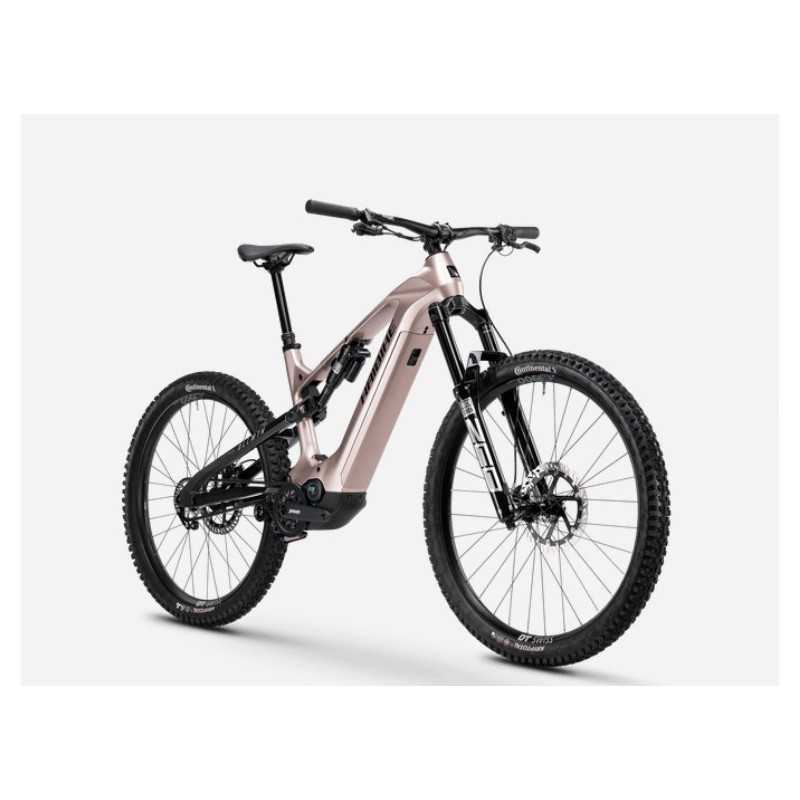

ALLMTN CF 11 TRN/IQ

Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!

Battery: InTube 800Wh

Charger: Pinion FIT Standard Charger 48V

Display: Pinion FIT Master Node Display + Remote Pure

Motor: Pinion E1.12 MGU, 600W, 85Nm

Frame: carbon, disc brake Post Mount

Maximum loadable weight: 135kg

Chain: Gates Carbon Drive Belt CDX, 120T

Gear: Pinion Motor-Gearbox-Unit, 12-speed

Number of gears: 12-speed

Shifter Right: Pinion Smart Shift TE1 E-Trigger, Trigger shifter

Front Fork: RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir, Offset: 44 mm, Travel: 160mm

Front Brake: Magura MT5, 4 pistons, 203 mm

Rear Brake: Magura MT5, 4 pistons, 203 mm

Grips: XLC MTB Grip Set VLG-1751D2

Handlebar: Haibike TheBar++ Dia. 31.8 mm 780 mm

Pedal: VP Components VPE-527 Alloy w/ Reflector

Saddle: Selle Royal Vivo

Seatpost: Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm

Front wheel set: DT Swiss H 1900 Spline, 29", 30 mm, 15x110 mm, Centerlock

Rear wheel set: DT Swiss H 1900 Spline, 27,5", 35 mm, 12x148 mm, CL, HG Single Speed

Tyre: Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622.
